PokiSDK - Construct 3

Made by Ossama Jouini

Introduction & Features

This is a Poki Plugin made for the Construct 3 Engine. It was designed to help the integration of the PokiSDK into your Construct 3 game.

Features
  • A preview project showing the implementation of the SDK through the addon.
  • The Poki SDK Construct 3 addon.

Once you install and enable the extension, you will be able to test the PokiSDK integration in preview mode (in browser) and be able to make builds (web-mobile) that can be uploaded to Poki platform.

1. Initialize the SDK

  • Download the Source/Release: Download the extension archive poki_sdkV2.

Or download the source code as a zip file.

git clone https://github.com/skymen/poki_sdkV2

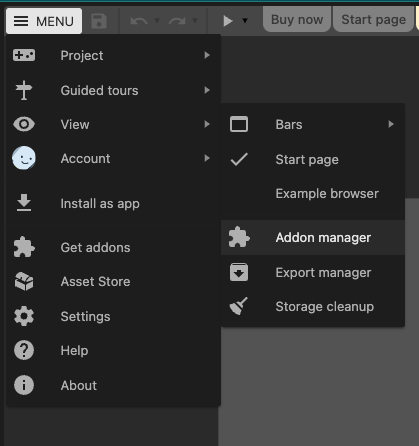

Once this is done, you can add the extension by going to Menu > View > Addons Manager.

You can download an example project here. In this project, you can find examples of how the Construct 3 Poki SDK can be implemented.

Screenshot

extension-add

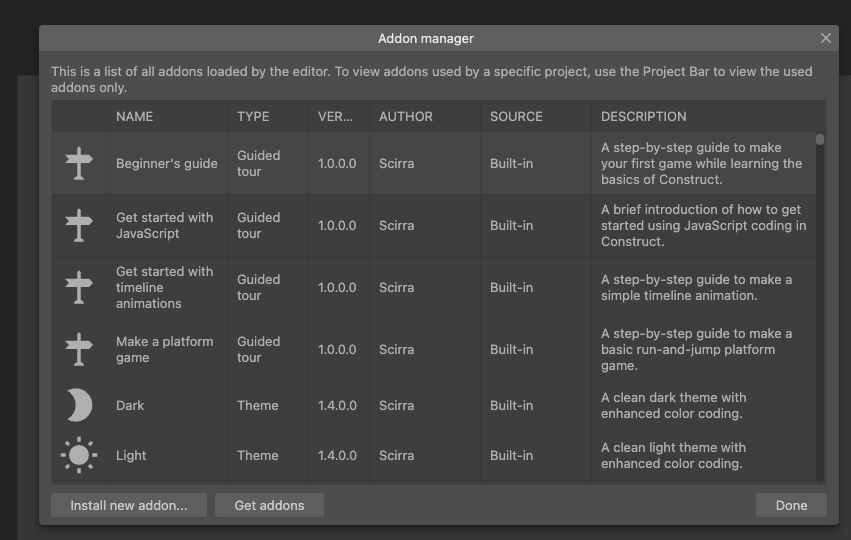

Here you can upload the addon by clicking on Install new addon... and selecting the .c3addon you’ve just downloaded.

extension-enable

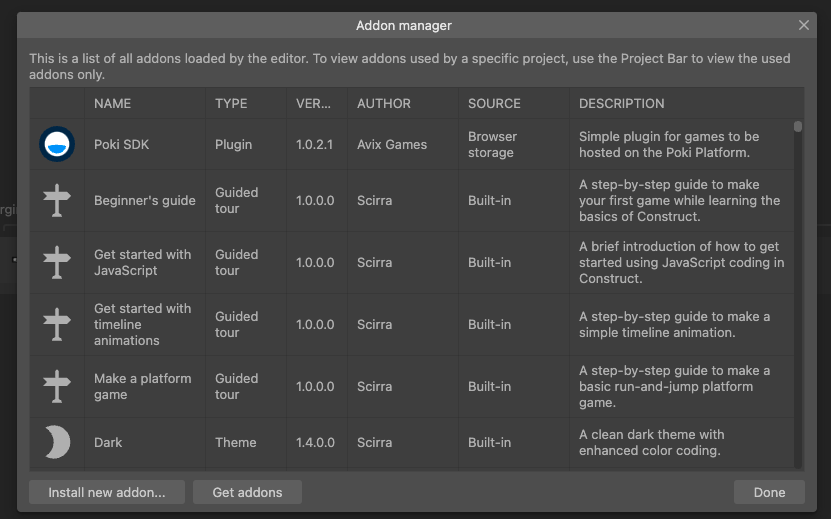

To make sure the extension is enabled, simply refresh the page. The Poki SDK addon should now be visible in your Addon Manager.

extension-enable

The addon loads and initializes the Poki SDK automatically. You can check that initialization has finished with the SDK Is Loaded condition.


2. Implement the game loading logic

The addon can notify Poki automatically depending on the Loading notification property. If you choose to do this manually, call the Loading End action when your game has finished loading all files and is ready to show the main menu or first playable screen.

Action: Poki SDK > Loading End


3. Implement the gameplay events

Use the  🎮 gameplayStart()  event to describe when users are playing your game (e.g. level start and unpause).

Use the  ☠ gameplayStop()  event to describe when users aren’t playing your game (e.g. level finish, game over, pause, quit to menu).

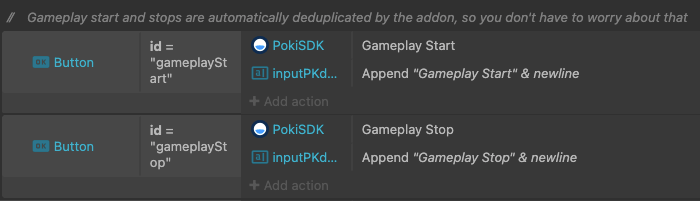

The Construct 3 SDK comes packed with two trigger functions that you can use to implement these events. You can implement these triggers as indicated below to trigger these events in the right locations for your game.

gameplay-function-triggers


4. Implement commercialBreak

Commercial breaks are used to display video ads and should be triggered on natural breaks in your game. Throughout the rest of your game, we recommend you implement the  🎞 commercialBreak()  before every  🎮 gameplayStart() , i.e. whenever the user has shown an intent to continue playing.

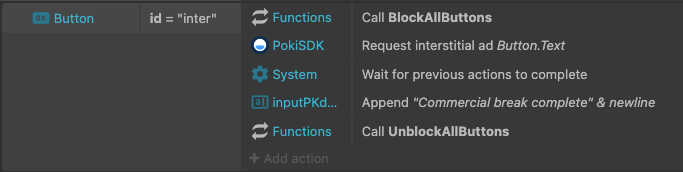

For this event, there’s a similar trigger as for the gameplay events.

gameplay-function-triggers

Important information about commercialBreaks

Not every single  🎞 commercialBreak()  will trigger an ad. Poki’s system will determine when a user is ready for another ad, so feel free to signal as many commercial break opportunities as possible.


5. Implement rewardedBreak

Rewarded breaks allow for a user to choose to watch a rewarded video ad in exchange for a certain benefit in the game (e.g. more coins, etc.). When using  🎬 rewardedBreak() , please make it clear to the player beforehand that they’re about to watch an ad.

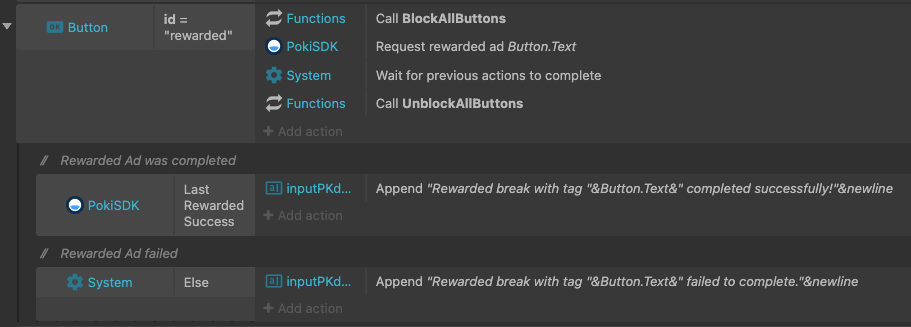

Be aware when using a  🎬 rewardedBreak()  to check whether the ad was completed. If this is not the case, don’t give the player a reward. gameplay-function-triggers

About the rewardedBreak timer

 🎬 rewardedBreak()  affects the timing of  🎞 commercialBreak()  - When a user interacts with a rewarded break, our system’s ad timer is reset to ensure the user does not immediately see another ad.


Final Steps

Shareable URLs and URL params

To create a shareable Poki URL, pass a JSON string to the Get Shareable URL action. Read the result with the ShareableURL expression.

Action:     Poki SDK > Get Shareable URL
Parameter:  {"id":"myid","type":"mytype","score":28}
Expression: ShareableURL

To read URL parameters from the Poki URL or current URL, use the URLParam expression:

Expression: URLParam("id")


Moving the Poki Pill on mobile

If the Poki Pill overlaps your UI on mobile, reposition it with the Move Pill action.

  • Top Percent: A value between 0 and 50.
  • Top Pixels: An additional pixel offset.
  • The Poki default is Top Percent = 0 and Top Pixels = 20.
Action: Poki SDK > Move Pill
Top Percent: 50
Top Pixels: -100


Upload and test your game in Poki for Developers

Congrats, you’ve successfully implemented the PokiSDK! Now upload your game to the Poki Inspector and test it there. When you’re happy with the implementation, send us a review request and we’ll play the game. Feel free to contact us via developersupport@poki.com if you’re stuck.
